Ceramic 3D Printed GNSS L1/E1 Bands Antenna

360°
L1E1-Band-Antenna-picture L1E1-Band-Antenna-picture L1E1-Band-Antenna-picture L1E1-Band-Antenna-picture L1E1-Band-Antenna-picture L1E1-Band-Antenna-picture L1E1-Band-Antenna-picture L1E1-Band-Antenna-picture L1E1-Band-Antenna-picture L1E1-Band-Antenna-picture L1E1-Band-Antenna-picture

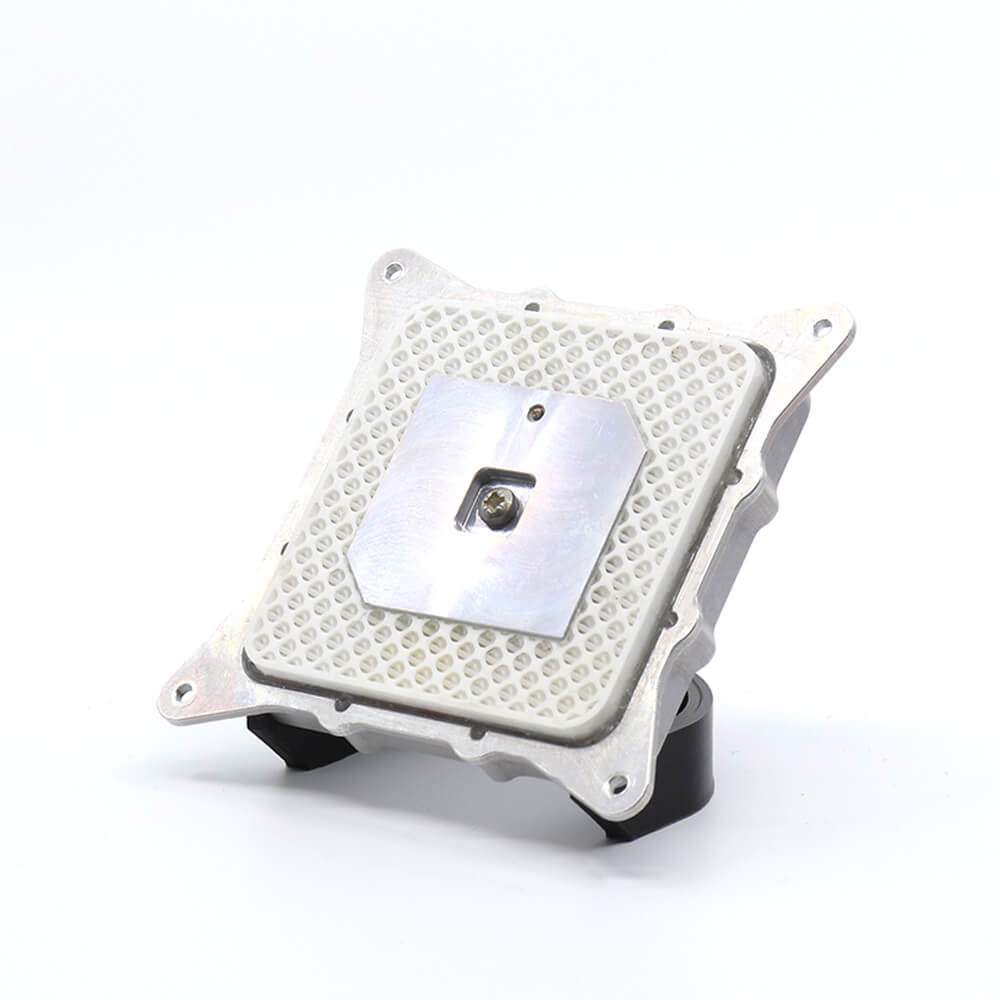

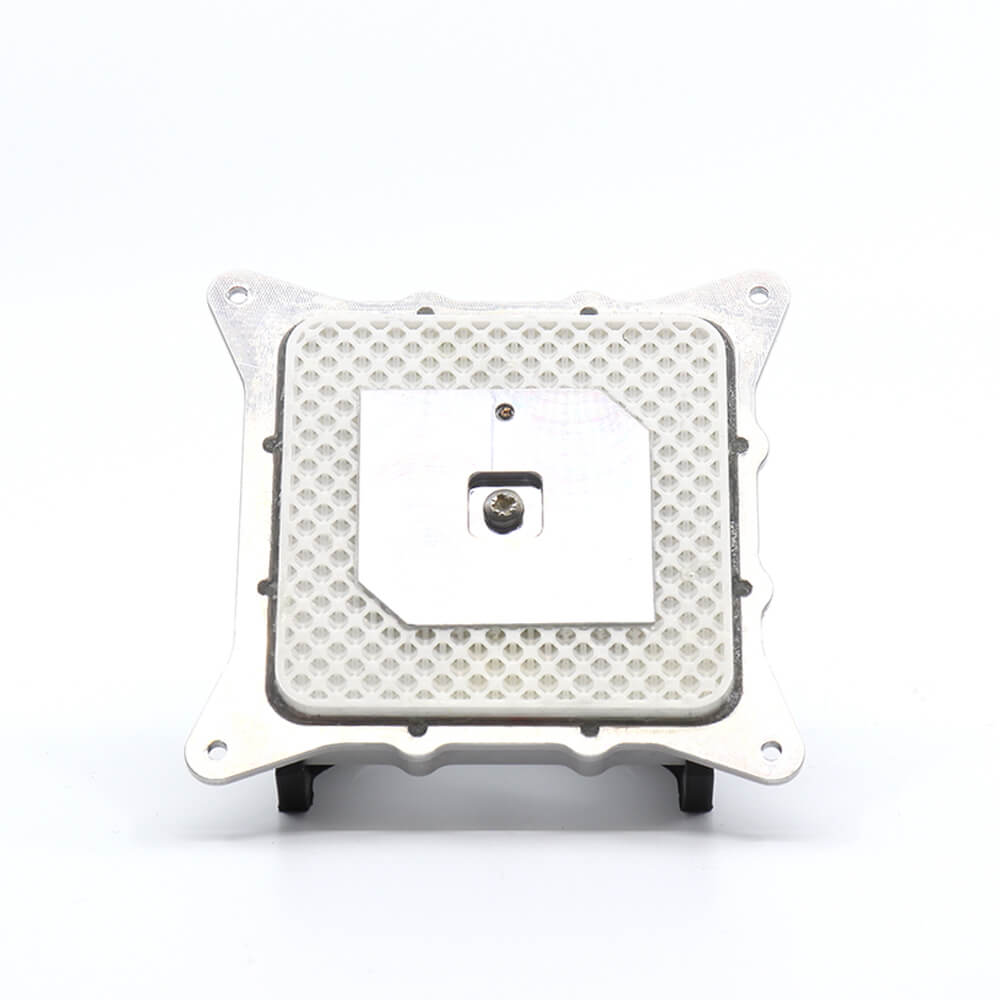

ANYWAVES GNSS L1 / E1 Bands Antenna brings together a unique technology of 3D printing and robustness of ceramic material within a very compact volume.
GNSS-L1E2-fond-noir
360°
L1E1-Band-Antenna-picture

Ceramic 3D Printed GNSS L1/E1 Bands Antenna

Qualifications

  • Technology Readiness Level 8
  • CNES SME Label

Benefits

  • Acceptance Tests (RF, Mechanical, Thermal) included :
    • Return loss
    • Z-axis random vibration
    • Thermal cycling
  • ITAR Free
Download the datasheet

Description

ANYWAVES GNSS L1 / E1 Bands Antenna brings together a unique technology of 3D printing and robustness of ceramic material within a very compact volume.

This antenna features excellent radiation characteristics within a compact and sleek design. It can withstand harsh environment without thermal protection thanks to material selection and solder less feed system.

Quote
Request
