Test Cap for S-Band TT&C Antennas

Description

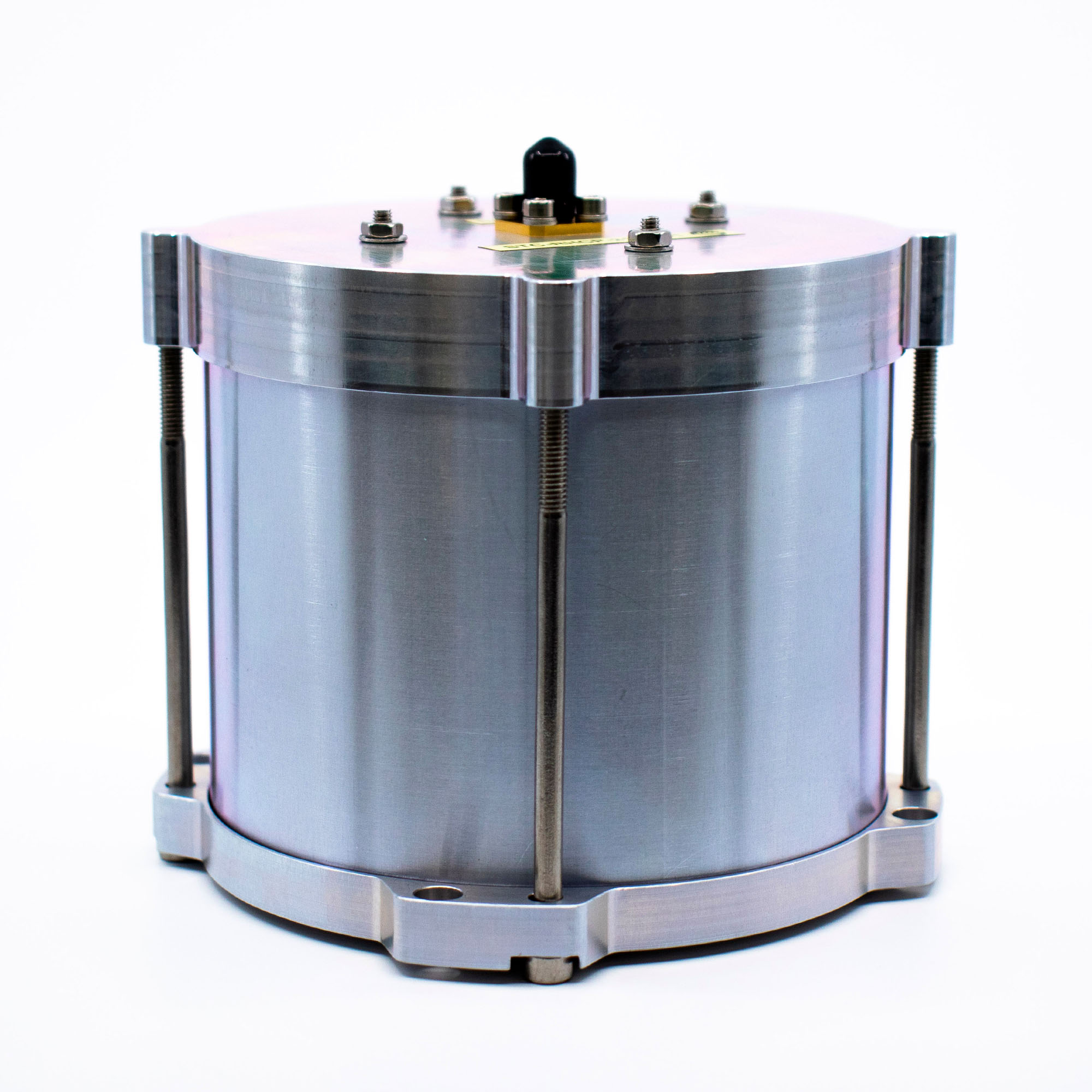

The Anywaves Test Cap (or Test Hat) for S-Band TT&C Antennas  is essential to carry out end-to-end testing (parallelism, assembly chain, thermal vacuum..). It features a simple and robust design consisting in a cylindrical aluminium cavity, covered with absorber material and terminated by a RF (Radio Frequency) probe.

It operates over the frequency band of the S-Band TTC antenna. This Test Cap enables reproductible performance measurements of antenna & transceiver on the platform.

It is delivered in a single part that can be directly screwed on top of the antenna, minimizing both the risk to damage the antenna and the manipulation steps.

NB : a Test Cap compatible version of the Anywaves S-Band TT&C antennas is required.

Read more
  • Very low impact on the antenna matching
  • No mounting bracket required on the platform
  • Safe & easy to mount & dismount
  • Compatible with thermal vacuum environment
  • Low RF leakage to protect users from radiation during the test
  • ITAR Free
Frequency band

From 1.98 GHz to 2.29 GHz

Envelope size without connector

⌀ 117mm x 98 mm

Mass with connector

910 g

Coupling factor

-29 dB

Polarization compatibility

Left or Right Hand Circular Polarization

RF Power

> 3W
